直流充电柜 120KW

价格(Price)索取:CC_JUNFENG@163.com


本公司提供与车辆相配套的直流充电柜和交流充电桩,这些推荐充电设施是经过严格实验并与我们的车辆充电协议匹配的。


本充电桩为直流快充柜,适用乘用车、商用车、客车。

This charging pile is a DC fast charging cabinet, suitable for passenger cars, commercial vehicles and passenger cars.


俊风汽车有限公司

JunFeng Automobile Co.,Ltd

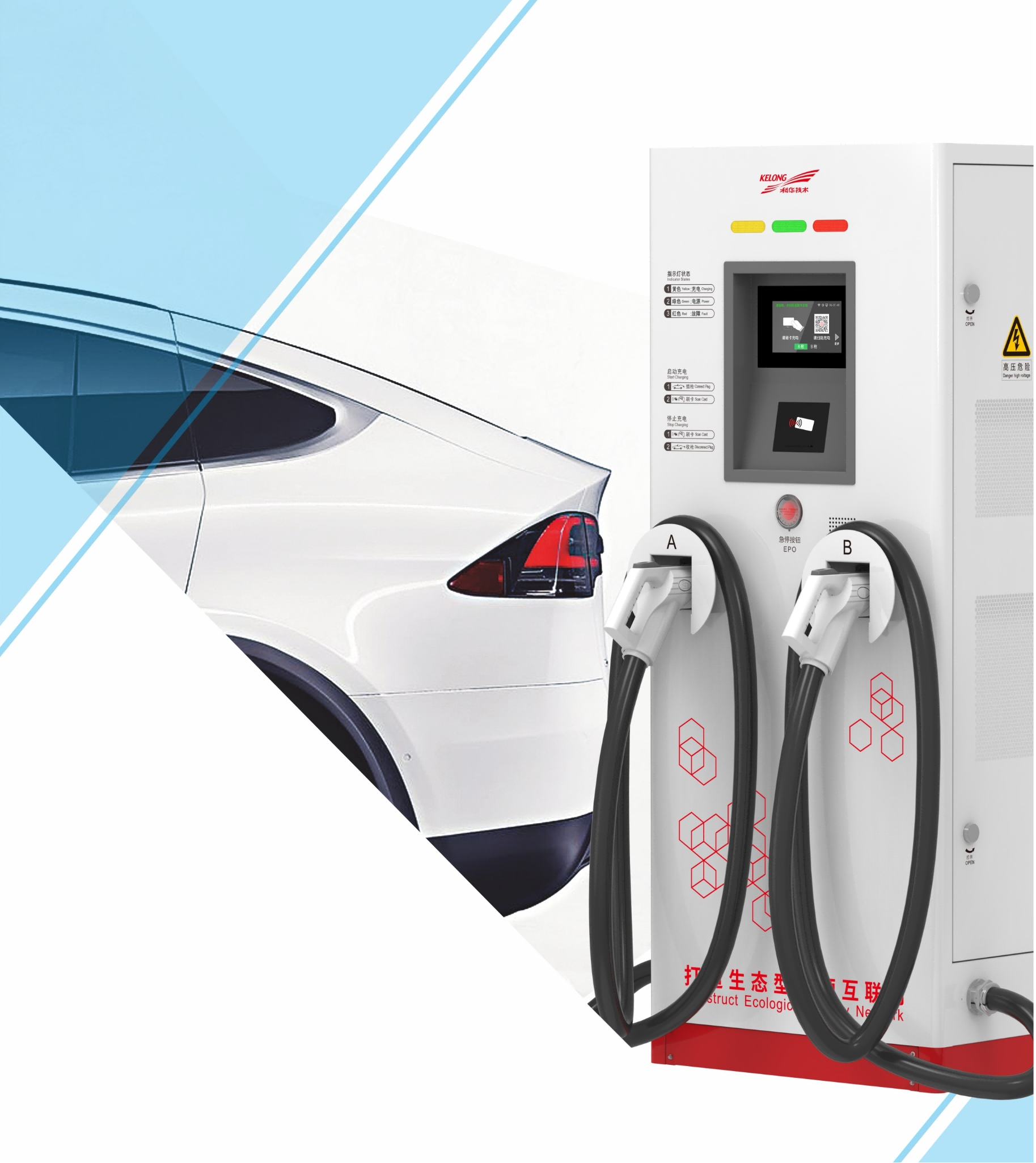

All-in-one DC charger

EVD751-120K-TD)

Technical Specification

Quote


 一、产品概述  product overview

一体式直流充电机由充电模块、控制系统、充电接口、人机交互、通信、计费等组成;设备可根据车辆BMS反馈的数据,动态调整充电参数,实现智能充电,广泛适用于各类充电应用场景。

The integrated DC charger is composed of charging module, control system, charging interface, human-computer interaction, communication, billing, etc. The device can dynamically adjust the charging parameters according to the data fed back by the vehicle BMS to realize intelligent charging, and is widely applicable to various types of charging. application scenarios.



二、适用范围 Scope of application

服务车型:适用于具备国标直流充电接口的车辆,如新能源纯电动公交车、乘用车、物流车、特种车辆等。

Service models: suitable for vehicles with national standard DC charging interfaces, such as new energy pure electric buses, passenger cars, logistics vehicles, special vehicles, etc.

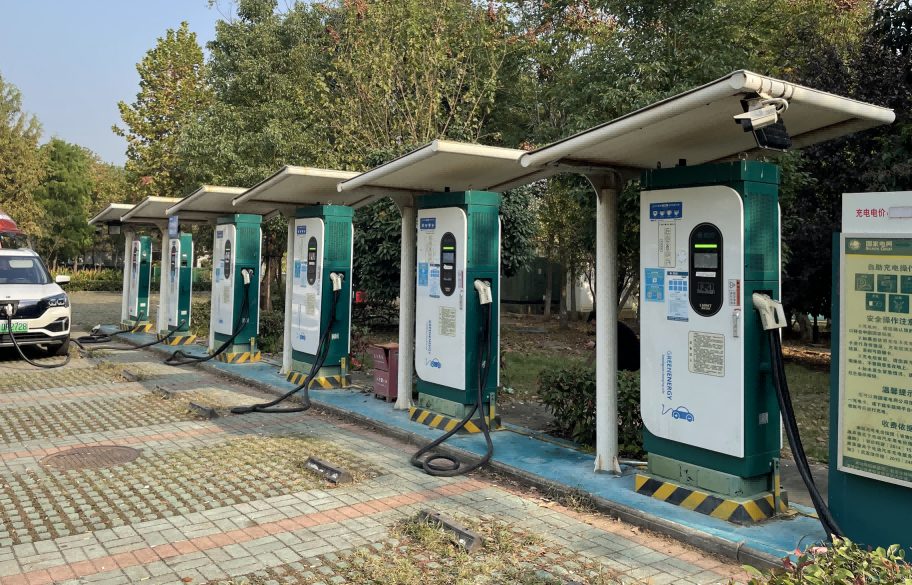

使用场景:适用于集中式充电站(如专用充电站、公共充电站等)以及分散式充电站(如小区、综合办公楼、主题公园、4S店等)。

Usage scenarios: It is suitable for centralized charging stations (such as dedicated charging stations, public charging stations, etc.) and decentralized charging stations (such as communities, comprehensive office buildings, theme parks, 4S stores, etc.).



满足标准: GB/T 18487.1-2015、GB/T 20234.1-2015、GB/T 20234.3-2015、GB/T 27930-2015

fulfill the standard:

  GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, GB/T 27930-2015





外观尺寸 Appearance size

一体式直流充电机(EVD751-120K-TD)外观及尺寸如图1所示:

The appearance and size of the integrated DC charger (EVD751-120K-TD) are shown in Figure 1:

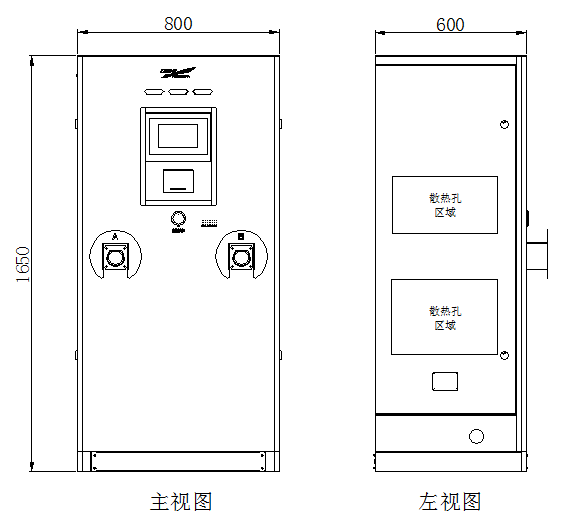

1一体式直流充电机(EVD751-120K-TD)外观及尺寸图

Figure 1 Appearance and dimensions of the integrated DC charger (EVD751-120K-TD)





主要技术指标 Main Specifications

一体式直流充电机(EVD751-120K-TD)技术指标如表3所示:

The technical indicators of the integrated DC charger (EVD751-120K-TD) are shown in Table 3:

                     型号model

参数 parameter

EVD751-120K-TD

产品名称 product name

120kW双枪一体式直流充电机Dual Gun Integrated DC Charger

输入

enter

工作电压Working voltage (VAC)

380V (三相五线制,3W+N+PE)±20%

频率范围Frequency range (Hz)

45~66

功率因数power factor

≥0.99

输出

output

充电接口(个)Charging interface (pcs)

2

输出电压范围Output Voltage Range (VDC)

200~750

输出功率Output power (kW)

120

充电枪长度Charging gun length (m)

5

功率分配方式Power distribution method

120/060/600/120

设备信息Device Information

冷却方式cooling method

风冷air cooling

最高效率highest efficiency

≥95.5 %

噪音Noise (dB)

65

防护等级Protection class

IP54

尺寸size(W×D×Hmm)

800×600×1650
