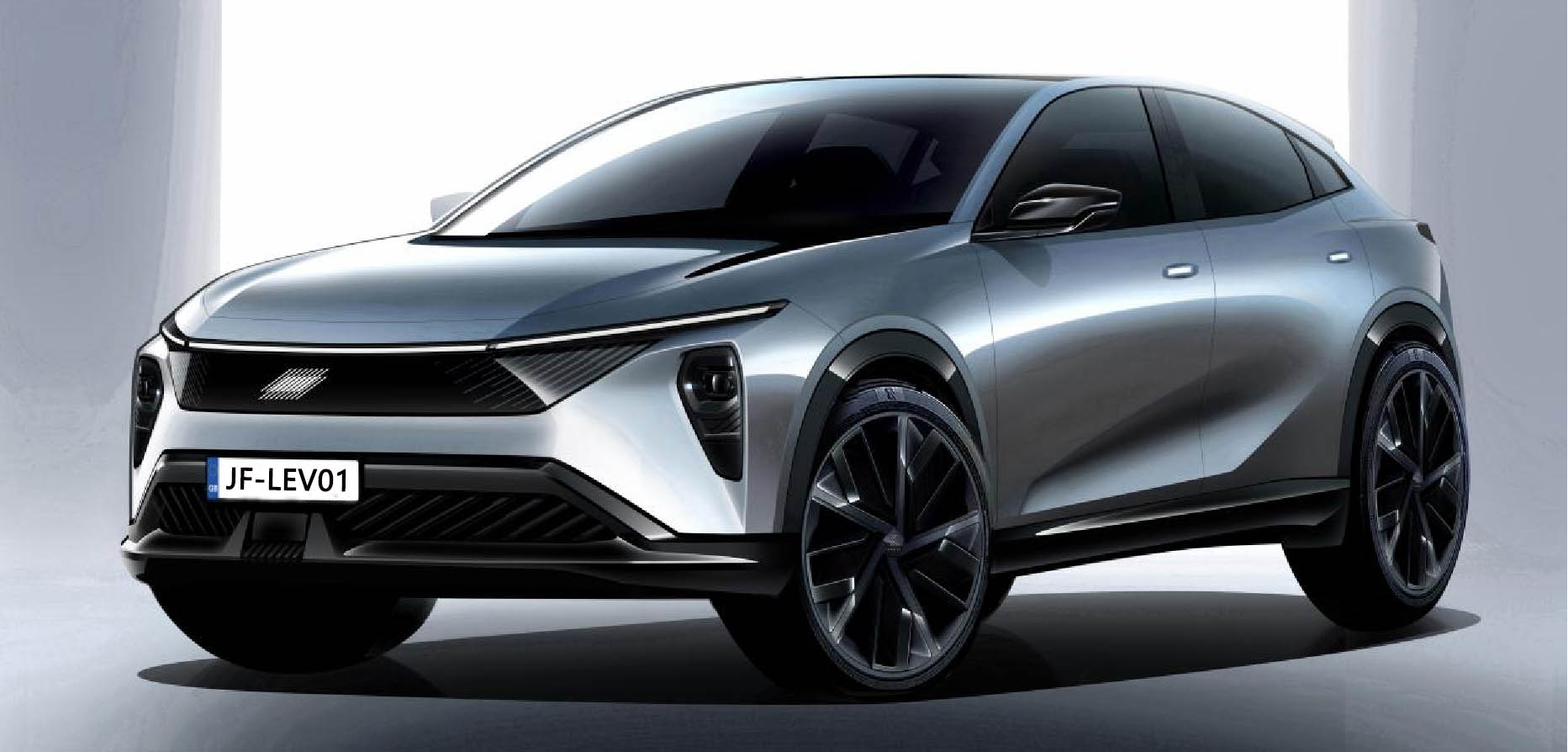

JF-L01 SUV
Price:CNY 3.50
| Brand | JunFeng |
| Classification | Battery electric new energy vehicle |
| Body dimension (mm) | 4640*1870*1655 |
| Wheelbase (mm) | 2760MM |
| Body structure | SUV with Five-door and Five-seat |
| Mileage (km) | NEDC Over 550KM |
| Type of battery | Lithium iron phosphate battery |
| Motor Power(KW) | 0 |
| Battery Capacity(KWh) | 67 |
| Charging period | Fast 30minutes ,slow 9H |
| Highest Driving Speed | 160 |
| Acceleration Time(s) | 100 |
| Driving motor locatio | Front |
| Volume of trunk | |
| Type of transmission | Automatic transmission |
| Curb weight | 1880KG |
| Warranty of vehicle | 3 yer or 15KM |
| Manufacturer | JunFeng Automobile (OEM) |
|
JF- LEV01 车型参数配置表 Vehicle Model Configuration Table 230906 |
|||
|
基本参数Basic Parameter |
英文名称 English Name |
500+km FWD | 500+km AWD |
| 车型 | Vehicle model | JF- LEV01 | |
| 车辆类别 | Type | SUV | SUV |
| 品牌 | Brand | JunFeng | |
| 能源类型 | Type of Energy | BEV | BEV |
| 长*宽*高(mm) |
Length*Width*Height (mm) |
4640*1870*1655 | 4640*1870*1655 |
| 轴距(mm) | Wheelbase (mm) | 2760 | 2760 |
| 车身结构 | Body Structure |
5门5座SUV SUV with Five-door and Five-seat |
5门5座SUV SUV with Five-door and Five-seat |
| 最高车速(km/h) | Maximum Speed(km/h) | 160 | 160 |
| 0-100km/h加速(s) |
0-100km/h Acceleration (s) |
7.7 | 4.3 |
| 0-100km/h制动(m) |
0-100km/h Braking distance(m) |
≦38 | ≦38 |
| 前轮距(mm) | Front Tread(mm) | 1585 | 1585 |
| 后轮距(mm) | Read Tread(mm) | 1595 | 1595 |
|
满载最小离地间隙 (mm) |
Minimum Ground Clearance (mm) |
160 | 160 |
| 最大爬坡度(％) | Max Climbing (％) | 35 | 35 |
| 最小转弯直径(m) |
Minimum turning diameter (m) |
11.5 | 11.5 |
| 后备箱容积(L) | Trunk Volume (L) | 450 | 450 |
| 整备质量(kg) | Curb Weight(kg) | 1880 | 1920 |
| 最大满载质量(kg) | GVW (kg) | 2255 | 2295 |
|
|
|||
|
|
|||
| 最大功率(kW) | Maximum Power (kW) | 150 | 300 |
| 最大扭矩(N.m) | Maximum torque (N ·m) | 320 | 640 |
| 电动机(Ps) | E-moter(Ps) | 204 | 408 |
| 电机类型 | Motor Type |
永磁/同步Permanent magnet/synchronous |
永磁/同步Permanent magnet/synchronous |
| 电机总功率 (kw) | Total Motor Power (kw) | 150 | 300 |
|
前电机最大功率 (kw) |
Maximum Power of Front Motor (kw) |
150 | 150 |
|
前电机最大扭矩 (N.m) |
Maximum Torque of Front Motor (N.m) |
320 | 320 |
|
后电机最大功率 (kw) |
Maximum Power of Rear Motor (kw) |
- | 150 |
|
后电机最大扭矩 (N.m) |
Maximum Torque of Rear Motor (N.m) |
- | 320 |
| 驱动电机数 |
Number of Driving Motors |
单电机Single Motor |
双电机 Dual motor |
| 电机布局 | Motor Layout | 前置 Front |
四驱 4DW |
| 档位数 | Number of Gears | 1 | 1 |
| 变速箱类型 | Trasmission Type |
电动车单速变速箱 Single gear Transmission |
电动车单速变速箱 Single gear Transmission |
| 驱动方式 | Driving type | FWD | AWD |
| 电池类型 | Battery |
磷酸铁锂 LiFePo |
磷酸铁锂 LiFePo |
|
NEDC纯电续航里程 (km) |
NEDC (km) | 500+ | 500+ |
| 快充时间(小时) | Fast Charge Time (h) | 0.5 | 0.5 |
| 慢充时间(小时) | Slow Charge Time (h) | 9 | 9 |
| 快充电量百分比 | Fast Charge Percentage | 80%SOC | 80%SOC |
| 电池冷却方式 | Battery Cooling Mode | 液冷Liquid Cooling | 液冷Liquid Cooling |
| 换电 | Swapping battery | 不支持Not Supported | 不支持Not Supported |
| 电池能量(kwh) | Battery capacity (kWh) | 67 | 67 |
|
电池包能量密度 (Wh/kg) |
Battery Energy Density (Wh/kg) |
135 | 135 |
| 快充功率(kw) | Fast Charge Power (kw) | 80 | 80 |
|
|
|||
| 前悬架类型 | Front Suspension Type |
麦弗逊式独立悬架 Mcpherson Independent Suspension |
麦弗逊式独立悬架 Mcpherson Independent Suspension |
| 后悬架类型 | Rear Suspension Type |
多连杆式独立悬架 Multi-Link Independent Suspension |
多连杆式独立悬架 Multi-Link Independent Suspension |
| 转向助力类型 | Steering Type |
电动助力Electric Power Steering |
电动助力Electric Power Steering |
| 前制动器类型 | Front Brake Type | 通风盘式Vented Disc | 通风盘式Vented Disc |
| 后制动器类型 | Rear Brake Type | 盘式 Disc | 盘式Disc |
| 驻车制动器类型 | Parking Brake Type |
电子驻车Electrical Parking Brake |
电子驻车Electrical Parking Brake |
| 前轮胎规格 | Front Tyre |
●235/50 R19 ○235/45 R20 |
●235/50 R19 ○235/45 R20 |
| 后轮胎规格 | Rear Tyre |
●235/50 R19 ○235/45 R20 |
●235/50 R19 ○235/45 R20 |
| 备胎规格 | Spare Tyre | ○ | ○ |
|
|
|||
|
制动力分配 (EBD/CBC等) |
Electronic Brake Force Distribution(EBD/CBC, etc.) |
● | ● |
|
刹车辅助 (EBA/BAS/BA等) |
Brake Assist (EBA/BAS/BA, etc.) |
● | ● |
|
牵引力控制 (ASR/TCS/TRC等) |
Traction Control (ASR/TCS/TRC etc.) |
● | ● |
| ABS防抱死 | ABS | ● | ● |
|
车身稳定系统 (ESC/ESP/DSC等) |
Electronic Stability Control(ESC/ESP/DSC, etc.) |
● | ● |
| 并线辅助 (BSD) |
Blind Spot Detection (BSD) |
○ | ○ |
|
车身偏离预警系统 (LDWS) |
Lane Departure Warning System |
○ | ○ |
|
车道保持辅助系统 (LKAS) |
Lane keeping Assistance Systems |
○ | ○ |
|
车道居中保持 (LCC) |
Lane Centering Control | ○ | ○ |
|
道路交通标识识别 (TSR) |
Traffic Sign Recognition |
○ | ○ |
|
主动刹车/主动安全 系统 (AEB) |
Autonomous Emergency Braking |
○ | ○ |
| DOW开门预警 | Door Open Warning | ○ | ○ |
|
前方碰撞预警 (FCW) |
Forward Collision Warning |
○ | ○ |
|
后方碰撞预警 (RCW) |
Rear Collision Warning | ○ | ○ |
| 前/后驻车雷达 |
Front /Rear Parking Sensor |
前●/后● Front/Rear | 前●/后● Front/Rear |
| 驾驶辅助影像 |
Driving Assistance Image |
○360度全景影像 360 - degree Panoramic Image |
○360度全景影像 360 - degree Panoramic Image |
| 巡航系统 | Cruise Control System |
○全速自适应巡航Full Speed Range Adaptive Cruise Control |
○全速自适应巡航Full Speed Range Adaptive Cruise Control |
| 驾驶模式切换 | Driving mode |
●运动 Sport ●经济Economy ●标准/舒适 Standard/comfortable |
●运动 Sport ●经济Economy ●标准/舒适 Standard/comfortable |
| 自动泊车入位 | APA | ○ | ○ |
| 制动能量回收系统 |
Braking Energy Recovery System |
● | ● |
| 自动驻车 | Auto Hold | ● | ● |
| 上坡辅助 |
Hill-start Assist Control |
● | ● |
| 辅助驾驶系统 | ADAS | ○L2 | ○L2 |
|
|
|||
| 中控彩色屏幕 | IVI | ●TFT | ●TFT |
| 卫星导航系统 | GPS | ●GPS | ●GPS |
| 导航路况信息显示 | Navigation | ● | ● |
|
道路救援呼叫 (E Call) |
E-CALL | ○ | ○ |
| 蓝牙/车载电话 | BLE | ● | ● |
| 语音识别控制系统 | SDS | ○多媒体系统 | ●多媒体系统 |
| 车联网 | IOV | ● | ● |
| 4G/5G网络 | 4G/5G | 4G | 4G |
| 支持OTA | OTA | ● | ● |
| WIFI热点 | WIFI | ○ | ● |
| 多媒体/充电接口 |
Multimedia/Charging port |
●USB ●Type-C |
●USB ●Type-C |
| USB/Type-C接口数量 | Number of USB/Type-C |
●前排2个/后排2个Two in the Front/two in the Back |
●前排2个/后排2个Two in the Front/two in the Back |
| 扬声器数量 | Number of Speakers |
4喇叭 4 speaker |
8喇叭 8 speaker |
| 全液晶仪表盘 | LCD Instrument | ● | ● |
| 事故数据记录 (EDR) | EDR | ○ | ○ |
| 手机无线充电功能 | WPC | ○ | ○ |
| 电池预加热 | Battery Pre-heating |
PTC液冷液热的电池包 Water PTC |
PTC液冷液热的电池包 Water PTC |
| 对外放电 | Reverse charging | ○ | ● |
| 低速行车警告 | AVAS | ● | ● |
|
|
|||
| 天窗类型 | Sunroof Type |
○不可开启全景天窗 Panaramic sunroof |
○不可开启全景天窗 Panaramic sunroof |
| 轮圈材质 | Wheel material | ●铝合金Aluminum Alloy | ●铝合金Aluminum Alloy |
| 电动后备箱 | EGT | ○ | ● |
| 近光灯灯源 | Low Beam Type | LED | LED |
| 远光灯灯源 | High Beam type | LED | LED |
| LED日间行车灯 | LED Daytime Lamps | ● | ● |
| 自动头灯 | Automatic headlights | ● | ● |
| 大灯高度可调 | Headlight adjustable | ● | ● |
| 大灯延时关闭 | Follow Me Home | ● | ● |
| 外后视镜功能 |
Ext Rearview Mirror Function |
●电动调节Electric Adjustment ○电动折叠Electric Folding ●后视镜加热Heating the Rearview Mirror ○锁车自动折叠 Automatic Folding after locking the Car |
●电动调节Electric Adjustment ●电动折叠Electric Folding ●后视镜加热Heating the Rearview Mirror ●锁车自动折叠 Automatic Folding after locking the Car |
| 后雨刷 | Rear Wiper | ● | ● |
| 自动雨刮功能 | Automatic Wiper | ● | ● |
| 前后拖车钩 |
Front and Rear Tow Hooks |
● | ● |
| 防盗 | IMMO |
● 转向管柱steering column 、 VCU/BCM |
● 转向管柱steering column、VCU/BCM |
| 车前雾灯 | Front Fog Lamp | ○ | ○ |
| 车后雾灯 | Rear Fog Lamp | ● | ● |
|
|
|||
| 方向盘材质 | Steering Wheel Material | ●皮质Leather | ●皮质Leather |
| 方向盘位置调节 |
Steering Wheel Position Adjustment |
●手动上下+前后调节 Manually Up and Down + Front and Rear Adjustment |
○电动上下+前后调节 Electric Up and Down + Front and Rear Adjustment |
| 换挡形式 | Shift Mode | 电子旋钮换挡 EKS | 电子旋钮换挡 EKS |
| 多功能方向盘 |
Multifunctional Steering Wheel |
● | ● |
| 车内中控锁 | Central Door Lock | ● | ● |
| 阅读灯 | Reading Lamp | ● | ● |
| 车内环境氛围灯 | Ambient Light | ○多色multicolor | ●多色multicolor |
| 前/后电动车窗 |
Front/Rear Electric Window |
前●/后● Front/Rear | 前●/后● Front/Rear |
| 车窗一键升降功能 | Glass one key Lift | ●全车 the Whole Car | ●全车 the Whole Car |
| 车窗防夹手功能 |
Windows with Anti- clamping function |
● | ● |
| 内后视镜功能 |
Int Rearview Mirror Function |
●手动防炫目Manually Anti- Glare |
●手动防炫目Manually Anti-Glare |
| 车内化妆镜 | Vanity Mirror |
●主驾驶+照明灯Main driver + Lighting ●副驾驶+照明灯Co-pilot + Lighting |
●主驾驶+照明灯Main driver + Lighting ●副驾驶+照明灯Co-pilot + Lighting |
| 行李箱灯 | Trunk Light | ● | ● |
| 12V电源 | 12V Power | ● | ● |
|
|
|||
| 空调温度控制方式 | A/C Control Mode |
●自动空调 Automatic Air Conditioning |
●自动空调 Automatic Air Conditioning |
| 后座出风口 | Rear Vent | ● | ● |
| 温度分区控制 |
Temperature Zoning Control |
双分区 Dual | 双分区 Dual |
| 后排空调控制面板 | Rear vent Control Panel | - | - |
| 车载空气净化器 | Car Air Purifier | ○ | ○ |
| 车内PM2.5过滤装置 | PM2.5 Filter | ○ | ○ |
|
|
|||
| 钥匙类型 | Key Type | ●遥控钥匙 Remote Key | ●遥控钥匙 Remote Key |
| 无钥匙启动系统 | PEPS-Start | ● | ● |
| 无钥匙进入系统 | PEPS-Access | ●驾驶位 Driver's seat | ●驾驶位 Driver's seat |
|
|
|||
| 座椅面料 | Seat Fabric |
●织物 Textile ○仿皮 (或PVC) Imitation Leather(or PVC) |
●织物 Textile ○仿皮 (或PVC) Imitation Leather(or PVC) |
| 驾驶座 | Driver's Seat function |
●8向 电动调节 (升降4向) 8-Way Electric adjustment (4-Way up,4-Way down) ○电动腰托 (气袋，4向) Electric waist support (4- way air bag) ●乘员检测Crew Inspection ○座椅记忆功能(迎宾) Seat memory function (welcome guests) |
●8向 电动调节 (升降4向) 8-Way Electric adjustment (4-Way up,4-Way down) ○电动腰托 (气袋，4向) Electric waist support (4-way air bag) ●乘员检测Crew Inspection ●座椅记忆功能(迎宾) Seat memory function (welcome guests) |
| 副驾驶座 | Front Seat |
●4向 电动调节4-Way Eletric Adjustment ●乘员检测Crew Inspection |
●4向 电动调节4-Way Eletric Adjustment ●乘员检测Crew Inspection |
| 后头枕可调节 |
Rear Headrest Adjustable |
●后头枕可调节 (上下) Adjustable Rear Headrest (up and down) |
●后头枕可调节 (上下) Adjustable Rear Headrest (up and down) |
| 后排座椅 | Rear Seat |
●3人四六分式、带中央扶手 、 带杯托The Proportion is 4 and 6 for Three People, with Central Armrest and Cup Holder ●固定方式-椅背锁Fixing mode - Seat back lock ●后头枕可调节 (上下) Adjustable Rear Headrest (up and down) ●一体式座垫One-piece Seat Cushion |
●3人四六分式、带中央扶手 、 带杯托The Proportion is 4 and 6 for Three People, with Central Armrest and Cup Holder ●固定方式-椅背锁Fixing mode - Seat back lock ●后头枕可调节 (上下) Adjustable Rear Headrest (up and down) ●一体式座垫One-piece Seat Cushion |
|
|
|||
| 安全气囊 | Air Bag |
●驾驶位气囊DAB ●副驾驶位气囊PAB ●侧气囊SAB ●侧气帘 (前后排带保压) CAB |
●驾驶位气囊DAB ●副驾驶位气囊PAB ●侧气囊SAB ●侧气帘 (前后排带保压) CAB |
| 前排安全带 | Front Seat Belt |
●安全带高度可调Seat Belt Height is Adjustable ●限力 Force Limited |
●安全带高度可调Seat Belt Height is Adjustable ●限力 Force Limited |
| 后排安全带 | Rear Seat Belt |
●3点式 Three-point Type ●中间三点式安全带 (靠背 上) Middle Three-point Seat Belt (on the back)" |
●3点式 Three-point Type ●中间三点式安全带 (靠背 上) Middle Three-point Seat Belt (on the back)" |
| 后排儿童座椅 | Rear Child Seat | ●儿童座椅固定装置ISOFIX | ●儿童座椅固定装置ISOFIX |
|
前排安全带未系提 醒 |
Front Seat Belt Reminder |
●声音+指示灯Sound + Indicator |
●声音+指示灯Sound + Indicator |
|
后排安全带未系提 醒 |
Rear Seat Belt Reminder |
●声音+指示灯Sound + Indicator |
●声音+指示灯Sound + Indicator |
| 酒精锁接口 | Alcolock interface | ○ | ○ |
|
疲劳驾驶提示 (DFMS) |
DFMS | ○ | ○ |
|
Remarks : Marking ● is the standard configuration, Mark ○ is the optional configuration. |
|||
| This specification is for reference only, please confirm with the actual vehicle of Dongfeng Motor Co., Ltd. Any changes to the information provided are subject to the latest version. | |||
| other | Secondary parameters | The parts and components are constantly updated in production. The above parameters are only for reference and are mainly based on actual vehicles. The core parameters and configuration remain unchanged. | |
| OEM customization |
Wuhan Junfeng Automobile Co., Ltd.
|
||
